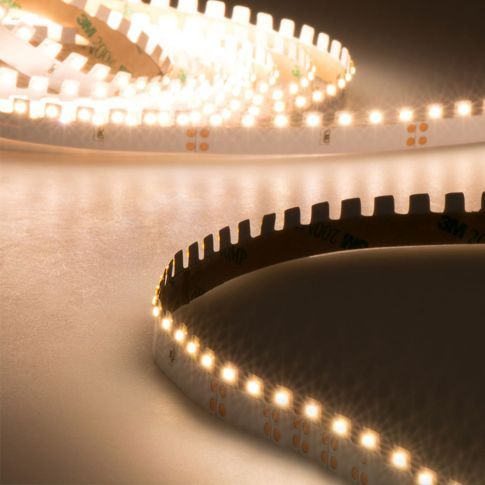

LED CRI930 flex stripe Angle, 24V DC, 10W, IP20, 3000K, 5m roll, 112 LED/m
In stock
Article number
112506
| Article number | 112506 |
|---|---|
| Product description | LED CRI930 flex stripe Angle, 24V DC, 10W, IP20, 3000K, 5m roll, 112 LED/m |
| GTIN - EAN | 9009377034329 |
| Features |     |
| Special features | Separation point: 62,5mm with 7 SMD each | Pitch (light point center-center): 8,93mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-28 |
| Nominal voltage | 24 V DC |
| Rated power | 10 W/m |
| Active power | 9 W/m |
| Luminous flux in lumen | 1000 lm/m |
| RGB light source | No |
| Color temperature | 3000K |
| CRI Ra | 90 |
| Beam angle | 120° |
| Pitch SMD (mm) | 8.93 |
| Max. length per feed (m) | 5,0 |
| Type de ruban adhésif | 3M VHB |
| Protection class | IP20 |
| Permissible ambient temp. | 0°C - 45°C |
| Length in mm | 5000,0 |
| Width in mm | 8,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 53000 |
| Guarantee in years | 2 |
| Excess lengths | N |
