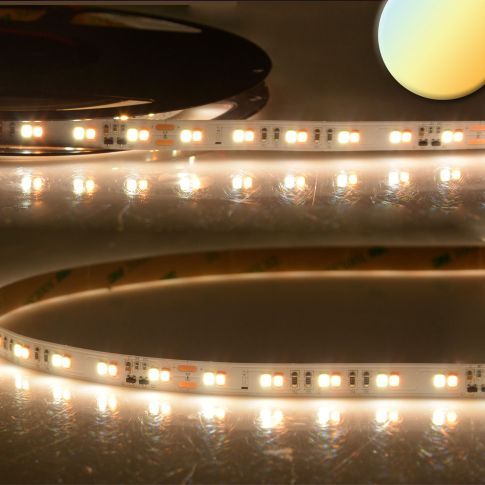

LED CRI90 SUNSET Dim-to-warm (via PWM) flex stripe, 24V DC, 14W, IP20, 1800-3000K, 5m roll, 60 LED/m
In stock
Article number
115259
| Article number | 115259 |
|---|---|
| Product description | LED CRI90 SUNSET Dim-to-warm (via PWM) flex stripe, 24V DC, 14W, IP20, 1800-3000K, 5m roll, 60 LED/m |
| GTIN - EAN | 9009377098932 |
| Features |      |
| Special features | Separation point: 100mm with 6 SMD each | Pitch (light point center-center): 16,67mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 9080A adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: C1-210 / C2-210 / K1-210 / K2-210 | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 14 W/m |
| Active power | 14 W/m |
| Luminous flux in lumen | 1160 lm/m |
| RGB light source | No |
| Color temperature | 1800K - 3000K |
| CRI Ra | 96 |
| Cooling mass g/m | 75.00 g/m |
| Beam angle | 120° |
| Pitch SMD (mm) | 16.67 |
| Max. length per feed (m) | 5,0 |
| Type de ruban adhésif | 3M 9080A |
| Protection class | IP20 |
| Permissible ambient temp. | 0°C - 45°C |
| Length in mm | 5000,0 |
| Width in mm | 10,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 52000 |
| Guarantee in years | 2 |
| Excess lengths | N |
