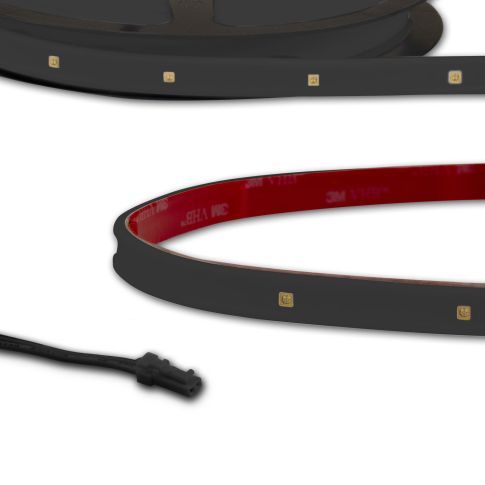

LED UV-C MiniAMP flex stripe 270nm, 12V DC, 6W, IP54, 116cm, black, one-sided cable+maleAMP 12 LED/m
In stock
Article number
114675
| Article number | 114675 |
|---|---|
| Product description | LED UV-C MiniAMP flex stripe 270nm, 12V DC, 6W, IP54, 116cm, black, one-sided cable+maleAMP 12 LED/m |
| GTIN - EAN | 9009377085314 |
| Features |      |
| Special features | Separation point: 27mm with 1 SMD each | Pitch (light point center-center): 83,33mm | 1 unit (roll) = 1,16m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | Silicone encapsulation | Connection cable one-sided with maleAMP, wire cross-section 0,5mm² |
| Nominal voltage | 12 V DC |
| Rated power | 6 W/m |
| Active power | 6 W |
| RGB light source | No |
| Color temperature | 5000K |
| CRI Ra | 85 |
| Beam angle | 120° |
| Pitch SMD (mm) | 83.33 |
| Max. length per feed (m) | 7,0 |
| Type de ruban adhésif | 3M VHB |
| Protection class | IP54 |
| Outdoor | Y |
| Permissible ambient temp. | -20°C - 45°C |
| Housing material | Silicone |
| Length in mm | 1160,0 |
| Width in mm | 10,0 |
| Height in mm | 4,0 |
| Lifetime L70|B10 | 20000 |
| Guarantee in years | 2 |
| Excess lengths | N |
