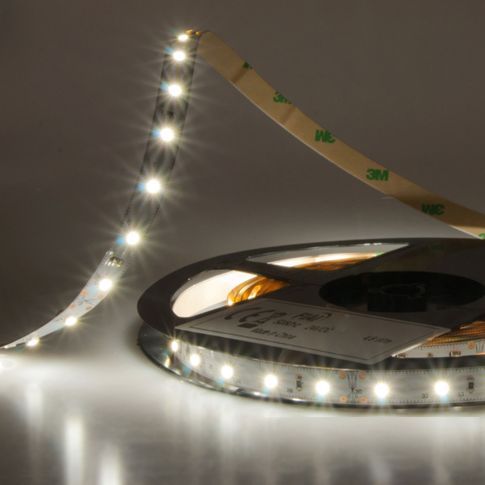

LED SIL840 flex stripe, 12V DC, 4.8W, IP20, 4000K, 5m roll, 60 LED/m
In stock
Article number
112061
| Article number | 112061 |
|---|---|
| Product description | LED SIL840 flex stripe, 12V DC, 4.8W, IP20, 4000K, 5m roll, 60 LED/m |
| GTIN - EAN | 9009377023255 |
| Features |      |
| Special features | Separation point: 50mm with 3 SMD each | Pitch (light point center-center): 16,67mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 7,5m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 9080A adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: C1-210 / C2-210 / K1-210 / K2-210 | Special feature: connection cable on both sides |
| Nominal voltage | 12 V DC |
| Rated power | 4,8 W/m |
| Active power | 4,8 W/m |
| Luminous flux in lumen | 500 lm/m |
| RGB light source | No |
| Color temperature | 4000K |
| CRI Ra | 82 |
| Cooling mass g/m | 45.00 g/m |
| Beam angle | 120° |
| Pitch SMD (mm) | 16.67 |
| Max. length per feed (m) | 7,5 |
| Type de ruban adhésif | 3M 9080A |
| Protection class | IP20 |
| Permissible ambient temp. | 0°C - 40°C |
| Length in mm | 5000,0 |
| Width in mm | 10,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 38000 |
| Guarantee in years | 2 |
| Excess lengths | N |
