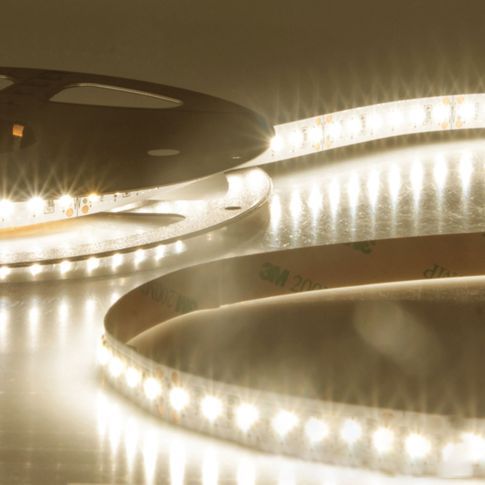

LED CRI930 flex stripe, 24V DC, 15W, IP20, 3000K, 5m roll, 120 LED/m
Article is located in the inlet, please contact the internal sales team
Article number
111901
| Article number | 111901 |
|---|---|
| Product description | LED CRI930 flex stripe, 24V DC, 15W, IP20, 3000K, 5m roll, 120 LED/m |
| GTIN - EAN | 9009377019579 |
| Features |      |
| Special features | Separation point: 50mm with 6 SMD each | Pitch (light point center-center): 8,33mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: C2-210 / K1-210 / K2-210 | Special feature: connection cable one-sided |
| Nominal voltage | 24 V DC |
| Rated power | 15 W/m |
| Active power | 15 W/m |
| Luminous flux in lumen | 1300 lm/m |
| RGB light source | No |
| Color temperature | 3000K |
| CRI Ra | 90 |
| Beam angle | 120° |
| Pitch SMD (mm) | 8.33 |
| Max. length per feed (m) | 5,0 |
| Type de ruban adhésif | 3M 300LSE |
| Protection class | IP20 |
| Permissible ambient temp. | 0°C - 45°C |
| Length in mm | 5000,0 |
| Width in mm | 10,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 53000 |
| Guarantee in years | 2 |
| Excess lengths | N |
