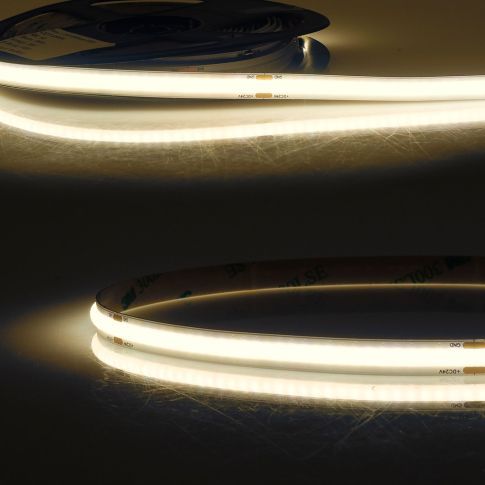

LED COB930 Linear flex stripe, 24V DC, 8W, IP20, 3000K, 5m roll, 480 LED/m
In stock
Article number
115775
| Article number | 115775 |
|---|---|
| Product description | LED COB930 Linear flex stripe, 24V DC, 8W, IP20, 3000K, 5m roll, 480 LED/m |
| GTIN - EAN | 9009377147807 |
| Features |      |
| Special features | Separation point: 50mm with 24 SMD each | Pitch (light point center-center): 2,08mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-28 | Special feature: connection cable one-sided |
| Nominal voltage | 24 V DC |
| Rated power | 8 W/m |
| Active power | 8 W/m |
| Luminous flux in lumen | 750 lm/m |
| RGB light source | No |
| Color temperature | 3000K |
| CRI Ra | 90 |
| Cooling mass g/m | 45.00 g/m |
| Beam angle | 120° |
| Pitch SMD (mm) | 2.08 |
| Max. length per feed (m) | 5,0 |
| Type de ruban adhésif | 3M 300LSE |
| Protection class | IP20 |
| Permissible ambient temp. | 0°C - 40°C |
| Length in mm | 5000,0 |
| Width in mm | 8,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 38000 |
| Guarantee in years | 3 |
| Excess lengths | N |
