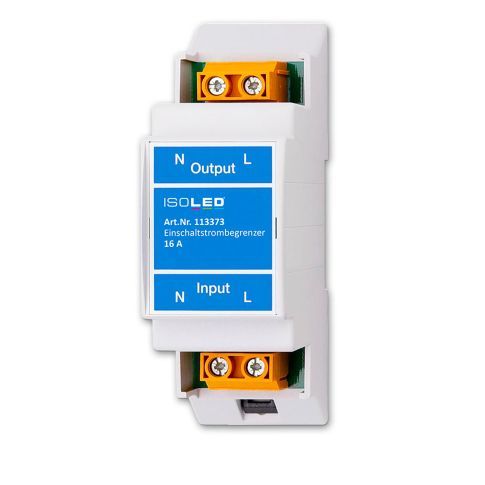

Startup current limiter 16A for capacitive loads, top hat rail mounting
In stock
Article number
113373
| Article number | 113373 |
|---|---|
| Product description | Startup current limiter 16A for capacitive loads, top hat rail mounting |
| GTIN - EAN | 9009377053351 |
| Features |    |
| Special features | limits the inrush currents of capacitive loads from 48A (33,9A eff.) for 300ms (therefore ideal for B16 circuit breakers as below their Ik of 80A), max. 3 inrushes per minute, with spring terminals for 0,5-6qmm, for mounting on 35mm top hat rail, incl. temperature protection. |
| Housing material | Plastic |
| Housing color | white |
| Length in mm | 110,0 |
| Width in mm | 36,5 |
| Height in mm | 62,0 |
| Guarantee in years | 2 |
| Net price | Y |
| Excess lengths | N |
