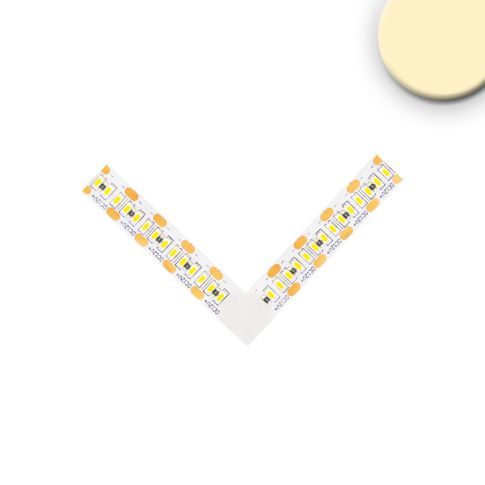

Corner connector luminous 0,5W for MiniAMP flex stripe, 12V DC, 6W, IP20, 3000K
In stock
Article number
115135
| Article number | 115135 |
|---|---|
| Product description | Corner connector luminous 0,5W for MiniAMP flex stripe, 12V DC, 6W, IP20, 3000K |
| GTIN - EAN | 9009377096433 |
| Features |      |
| Special features | 1 unit = 0,026m | length tolerance + thermal expansion: 1% | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: C1-210 / C2-210 / K1-210 / K2-210 | Wire cross-section 0,5mm² |
| Nominal voltage | 12 V DC |
| Rated power | 0,5 W |
| Active power | 0,5 W |
| Luminous flux in lumen | 30 lm |
| RGB light source | No |
| Color temperature | 3000K |
| CRI Ra | 90 |
| Cooling mass g/m | 0.00 g/m |
| Beam angle | 120° |
| Type de ruban adhésif | 3M 300LSE |
| Protection class | IP20 |
| Permissible ambient temp. | 0°C - 40°C |
| Length in mm | 26,0 |
| Width in mm | 26,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 52000 |
| Guarantee in years | 2 |
| Excess lengths | N |
